[Image of Mount Parts]

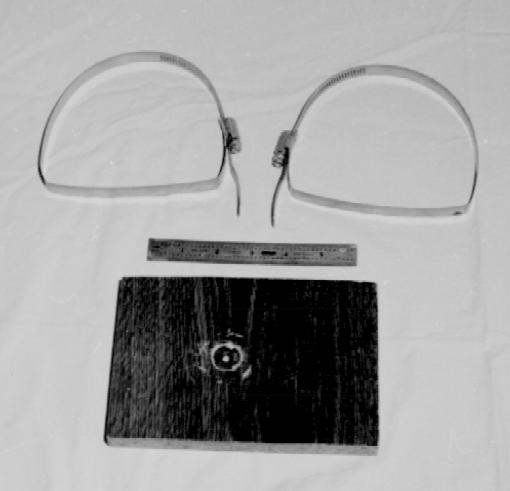

This is the telescope mounting board and a couple of pipe straps. Note that the Tee nut on the mounting board must face the telescope tube so that the tripod stud will pull it further into the board. Otherwise the tripod stud will pull the Tee nut out of the board and the telescope will fall. The ruler is 6 inches long.
