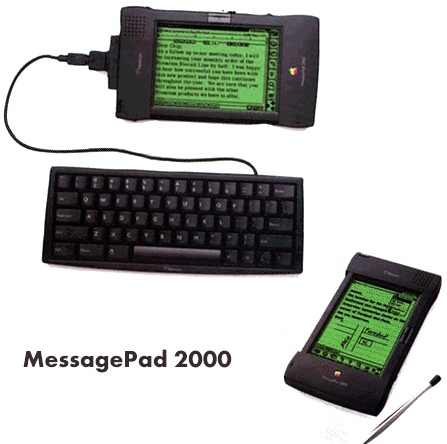

MessagePad 2000 with Newton 2.1 Operating System

Could this be the next generation of Newton?
  • StrongARM SA-110 RISC Processor at 161.9MHz
  • 5MB RAM (1MB DRAM, 4MB Flash RAM)
  • 8MB of mask ROM
  • Low-power transllective 4.9-in x 3.3-in LCD Display with backligh (480 by 320 pixels at 100 dpi with 16-level gray scale).
  • Two Type II PC Card Slots
  • Dual-mode IR transceiver for wireless data transfer at up to 115Kbps (IRDA mode) and 38.4Kbps (ASK mode)
  • Built-in Speaker and Microphone

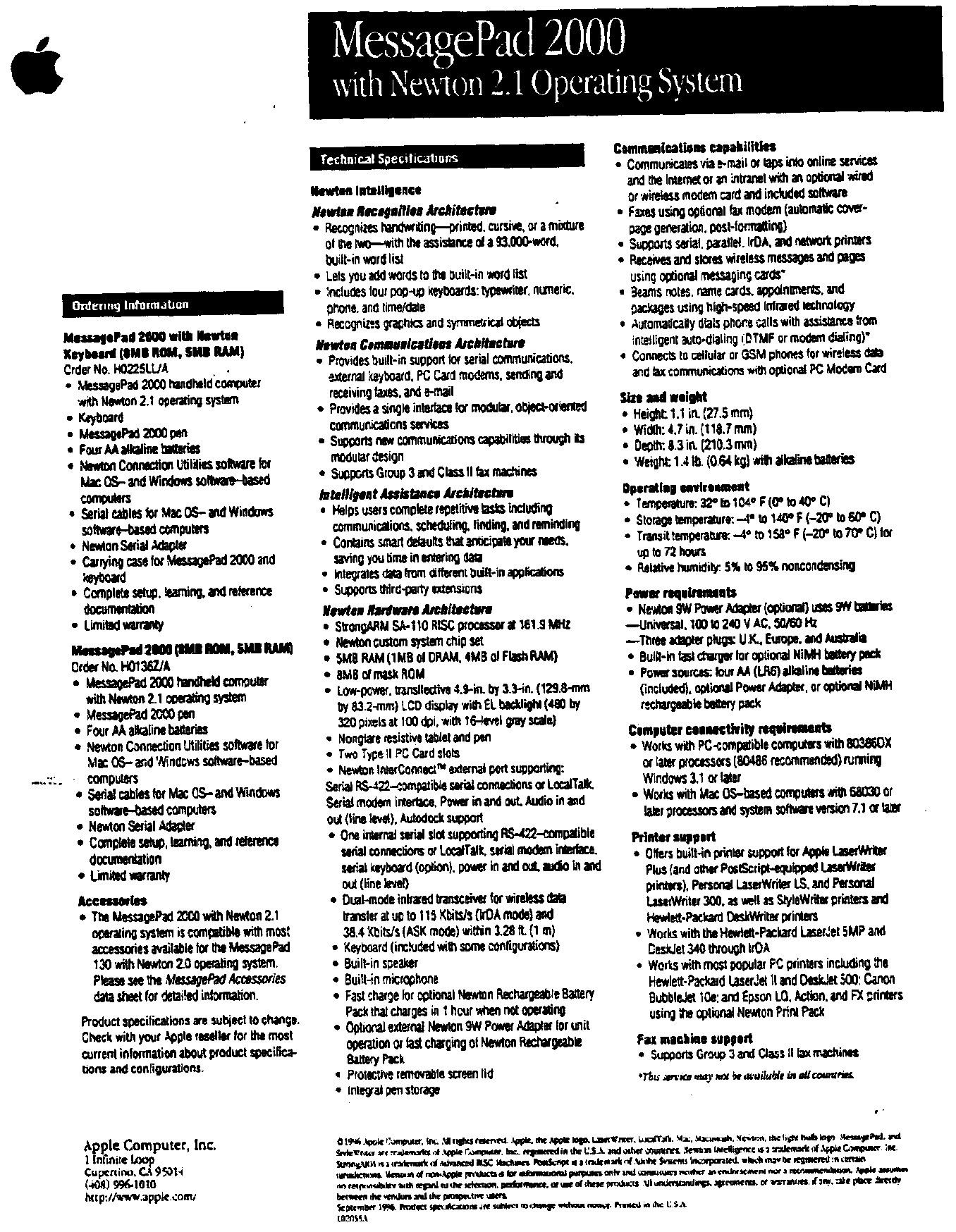

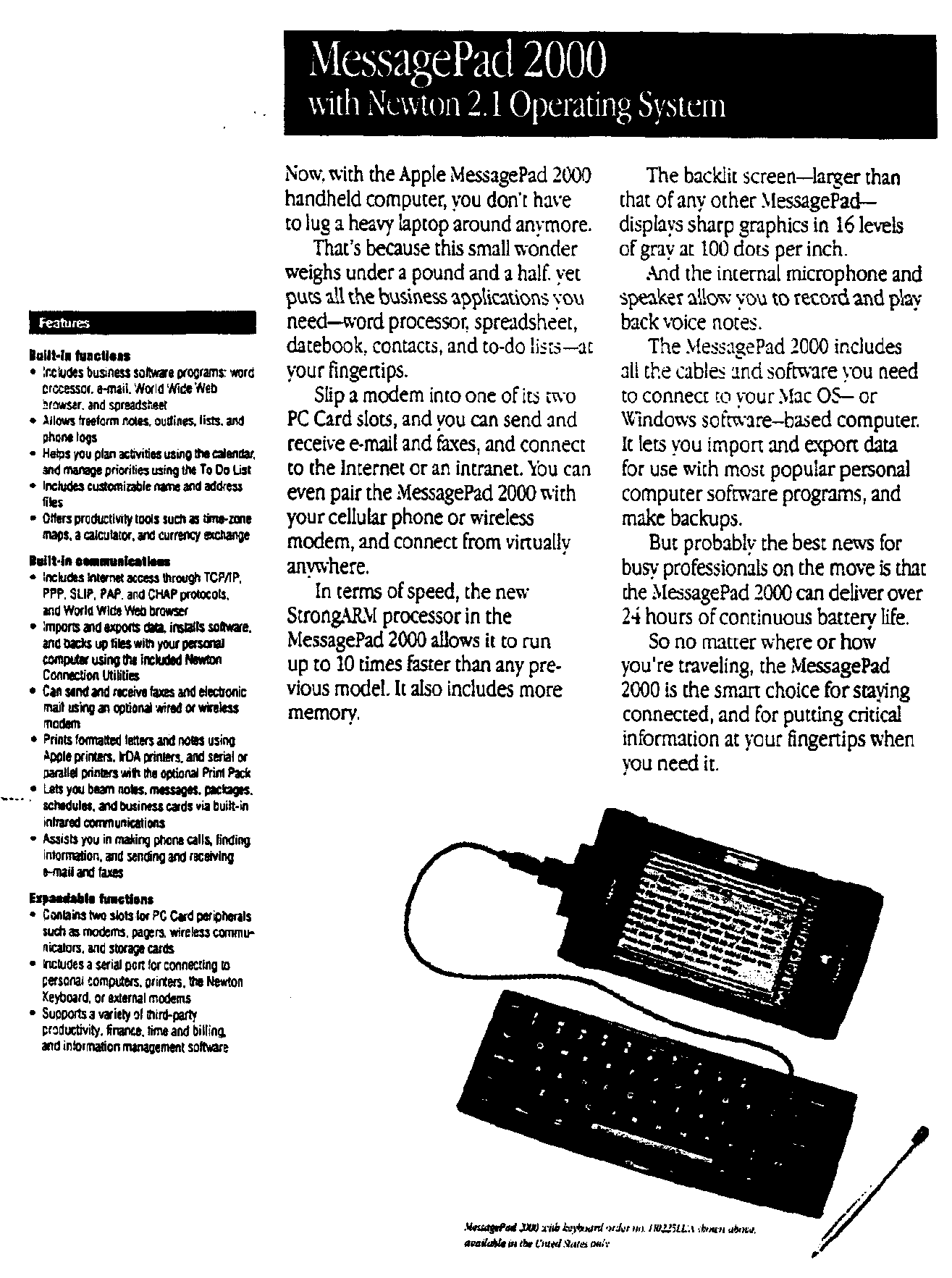

Click on image below for detail (approx. 74K) Click on image below for detail (approx. 92K)
